Specifications

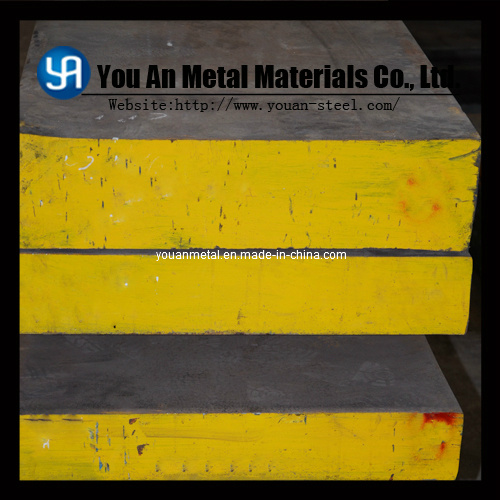

1.2312 steel alloy bar
Technology: EAF+LF+VD
Hardness: HBS: <=229
. Good wearable ability.
5. Round steel: Diameter: 20-600mm; Length: 2000-6000MM
6. Plate/sheet steel: Thickness: 15-500mm; Width: 200-2500mm; Length: 2000-5800mm
Advantage
High Quality
Various Type
Competive price
On time delivery
Hot selling! ! 1.2312 alloy steel bar
Typical Applications
Die holders, zinc die casting dies, backers, bolsters and injection moulds.
Chemical composition (%)
C% Mn% Si% Cr% Mo% P% S %
0.35~0.451.40~1.600.30~0.501.80~2.000.15~0.25=<0.030.05-0.10
Steel properties:
Plastic mould steel with additional sulphur, usually supplied in a quenched and tempered condition. Polishable, better machinibility compared to 1.2311. Similar to AISI P20+S.
Process: EAF +LF +VD +ESR +forged or hot rolled + heat treatment (optional)
Surface condition: Black/ round machine/ Turned
Inspection: Ultrasonic test, according to SEP1921D/d or customer requirements
Thermal Treatments
Forging: Heat slowly, allowing sufficient time for the steel to become heated through. Begin forging at 1050° C. Not forge below 930° C reheating if necessary. After forging, cool very slowly.
Stress Relieving: When dies are heavily marchined, recommend stabilishing just before finish machining in order to relieve machining strains. Heat to 460-500° C, Soak well and allow to cool in the air.
Annealing: Heat uniformly to 710-740° C. Soak well, cool slowly in the furnace.
Hardening: Heat to uniformly to until heaeted through. Quench in oil.
Delivery Condition
Forged + Annealed + Machining (Peeled/Turned)
DIN1.2312 mould steel can be supplied in various finishes including hot-rolled, pre-machined, fine-machined and precision ground. It is also available in the form of hollow bar.
Size Availability
We offer different types of steels, including square, flat and round.
Both electric steel and electroslag steel/Standard Non-standard are available.
